Cannot open MS Word attachment from Outlook “Word experienced an error trying to open the file”

This is a new one for me, and I believe it may have popped up after the recent Windows Update:

9-10-2013 3-01-48 PM

“Word experienced an error trying to open the file”.

Now if I SAVE that same file out of outlook (or copy and paste it to a drive), and then open from there – it opens fine.

Here is the solution:

  • Open Word 2010, 2013 or 2016
  • Go to File | Options | Trust Center | Trust Center Settings | Protected View
  • Un-check  the “Enable Protected View for Outlook Attachments” checkbox

9-10-2013 3-06-21 PM

Click ok/save that setting.

Go back to outlook and your word document should now open fine.



UPDATE 6/20/16:

I have double checked this and it does work fine for Word 2016 as well.

How to get IIS 7.5 web server to pass the BEAST PCI vulnerability compliance scans

If your e-commerce website keeps flunking PCI vulnerability complaince scans with the following error:

BEAST (Browser Exploit Against SSL/TLS) Vulnerability, CVE-2011-3389

and you are running Microsoft Server 2008 R2, I can help you.

If you aren’t on Windows Server 2008 R2, there is no known way to pass this test short of upgrading your server to W2K8R2 and doing the following steps.

This is the exact vulnerability as reported (in our case, by Trustkeeper):

BEAST (Browser Exploit Against SSL/TLS) Vulnerability The SSL protocol encrypts data by using CBC mode with chained initialization vectors. This allows an attacker, which is has gotten access to an HTTPS session via man-in-the-middle (MITM) attacks or other means, to obtain plain text HTTP headers via a blockwise chosen-boundary attack (BCBA) in conjunction with Javascript code that uses the HTML5 WebSocket API, the Java URLConnection API, or the Silverlight WebClient API. This vulnerability is more commonly referred to as Browser Exploit Against SSL/TLS or “BEAST”.

CVE: CVE-2011-3389

NVD: CVE-2011-3389

Bugtraq: 49778

CVSSv2: AV:N/AC:M/Au:N/C:P/I:N/A:N(4.30)

This is the remediation (as stated by Trustkeeper):

Affected users should disable all block-based cipher suites in the server’s SSL configuration and only support RC4 ciphers, which are not vulnerable to fully address this vulnerability. This vulnerability was addressed in TLS version 1.1/1.2, however, support for these newer TLS versions is not widely supported at the time of this writing, making it difficult to disable earlier versions.

Additionally, affected users can also configure SSL to prefer RC4 ciphers over block-based ciphers to limit, but not eliminate, exposure. Affected users that implement prioritization techniques for mitigation as described above should appeal this vulnerability and include details of the SSL configuration.

Here is the evidence (as stated by TrustKeeper):

Service: http
Evidence:
Cipher Suite: SSLv3 : DES-CBC3-SHA
Cipher Suite: SSLv3 : RC4-SHA
Cipher Suite: SSLv3 : RC4-MD5
Cipher Suite: TLSv1 : AES256-SHA
Cipher Suite: TLSv1 : AES128-SHA
Cipher Suite: TLSv1 : DES-CBC3-SHA
Cipher Suite: TLSv1 : RC4-SHA
Cipher Suite: TLSv1 : RC4-MD5

That isn’t much help, of course.

Ok, here is how to solve this.  And you don’t even need REGEDIT!

  1. Make sure your website is on a Windows 2008 R2 server, with a valid SSL certificate.
  2. Download the following FREE – and FANTASTIC program to your web server.
    1. https://www.nartac.com/Products/IISCrypto/Default.aspx
  3. Run the program on your web server.  Please be logged in as full admin, and remote desktop is fine.

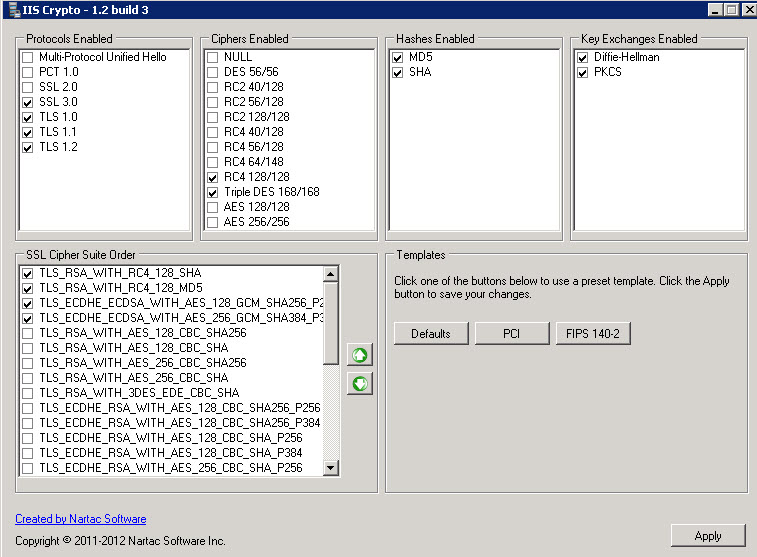

  4. Start by clicking the PCI button, then make all your settings look like below:
    1. pci

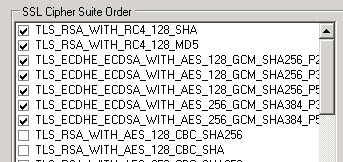

  5. In some cases you might have a few more listing under SSL Cipher Suite order.  Here is a screenshot from a second server (below).  The settings below are also perfectly fine:
    1. pci2
  6. In all cases – MAKE YOUR SETTINGS JUST LIKE ABOVE – and your site should always pass the BEAST test.
    1. IT IS CRITICAL that you have ONLY the CIPHERS selected in the above two screenshots, and the TOPMOST TWO in THIS SPECIFIC ORDER.
  7. apply the changes
  8. Restart the server.
  9. once the server is back up and running, go to the website below:
    1. https://www.ssllabs.com/ssltest/index.html
  10. Allow the test to complete.  The test will tell you if the site passes all the tests and is BEAST compliant, and it will give you a score for your website.  The website we tested scored 89 which is an “A”.

Hopefully this will help shortcut this process for some of you. I literally spent hours working this solution out.





SSL Weak Encryption Algorithms – how to disable them under IIS

Chances are if you are reading this you’ve failed a “Trustkeeper Scan” – with “Low severity” – due to having weak SSL encryption algorithms enabled on IIS.

It’s pretty easy to solve this, but if you read the microsoft KB article it looks pretty complicated.

Launch regedit and go to this key:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Ciphers

You basically want to disable everything that has less than 128 bit encryption.  On one of my servers, the ones with red arrows below need to be disabled:

CLICK FOR LARGER IMAGE

CLICK FOR LARGER IMAGE

So on each one of these, you want to “Right click”, add a DWORD, name it “Enabled” and set the Hex value to 00000000  (eight zeros).

Repeat for each one that has less than 128 bit length, and then restart your server.

You probably also need to reschedule a security scan so that your changes can be verified, and as always, please double check your SSL protected site with at least two different web browsers and make sure you can get into SSL mode with them both on your site.

Disabling SSLv2 support in IIS

If you have undergone a “Trustkeeper Scan” and failed due to your Microsoft web server using SSLv2, then read on.

NOTE: PLEASE READ THIS POST IN OUR BLOG HERE.  It is TWO YEARS NEWER and simplifies most of the tasks regarding SSL settings.



SSLv2 is considered a “medium” security risk and will cause your scan to FAIL, so therefore to be PCI-DSS compliant (for credit card companies), you need to disable it via the registry on your Windows server running IIS 3 or later.

The easiest way to do this is to read this KB article from Microsoft.

In a nutshell, you need to go to this registry key

HKey_Local_Machine\System\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols

Then locate the SSL 2.0 key

  • Click on the “Server” node.
  • On the Edit menu, click Add Value.
  • In the Data Type list, click DWORD.
  • In the Value Name box, type Enabled, and then click OKNote: If this value is present, just double-click the value to edit its current value.
  • Type 00000000 in Binary Editor to set the value of the new key equal to “0”.
  • Click OK. Restart the computer
  • if applicable, reschedule the security scan
