Monthly Archives: December 2012

How to get IIS 7.5 web server to pass the BEAST PCI vulnerability compliance scans

If your e-commerce website keeps flunking PCI vulnerability complaince scans with the following error:

BEAST (Browser Exploit Against SSL/TLS) Vulnerability, CVE-2011-3389

and you are running Microsoft Server 2008 R2, I can help you.

If you aren’t on Windows Server 2008 R2, there is no known way to pass this test short of upgrading your server to W2K8R2 and doing the following steps.

This is the exact vulnerability as reported (in our case, by Trustkeeper):

BEAST (Browser Exploit Against SSL/TLS) Vulnerability The SSL protocol encrypts data by using CBC mode with chained initialization vectors. This allows an attacker, which is has gotten access to an HTTPS session via man-in-the-middle (MITM) attacks or other means, to obtain plain text HTTP headers via a blockwise chosen-boundary attack (BCBA) in conjunction with Javascript code that uses the HTML5 WebSocket API, the Java URLConnection API, or the Silverlight WebClient API. This vulnerability is more commonly referred to as Browser Exploit Against SSL/TLS or “BEAST”.

CVE: CVE-2011-3389

NVD: CVE-2011-3389

Bugtraq: 49778

CVSSv2: AV:N/AC:M/Au:N/C:P/I:N/A:N(4.30)

This is the remediation (as stated by Trustkeeper):

Affected users should disable all block-based cipher suites in the server’s SSL configuration and only support RC4 ciphers, which are not vulnerable to fully address this vulnerability. This vulnerability was addressed in TLS version 1.1/1.2, however, support for these newer TLS versions is not widely supported at the time of this writing, making it difficult to disable earlier versions.

Additionally, affected users can also configure SSL to prefer RC4 ciphers over block-based ciphers to limit, but not eliminate, exposure. Affected users that implement prioritization techniques for mitigation as described above should appeal this vulnerability and include details of the SSL configuration.

Here is the evidence (as stated by TrustKeeper):

Service: http
Evidence:
Cipher Suite: SSLv3 : DES-CBC3-SHA
Cipher Suite: SSLv3 : RC4-SHA
Cipher Suite: SSLv3 : RC4-MD5
Cipher Suite: TLSv1 : AES256-SHA
Cipher Suite: TLSv1 : AES128-SHA
Cipher Suite: TLSv1 : DES-CBC3-SHA
Cipher Suite: TLSv1 : RC4-SHA
Cipher Suite: TLSv1 : RC4-MD5

That isn’t much help, of course.

Ok, here is how to solve this.  And you don’t even need REGEDIT!

  1. Make sure your website is on a Windows 2008 R2 server, with a valid SSL certificate.
  2. Download the following FREE – and FANTASTIC program to your web server.
    1. https://www.nartac.com/Products/IISCrypto/Default.aspx
  3. Run the program on your web server.  Please be logged in as full admin, and remote desktop is fine.
  4. Start by clicking the PCI button, then make all your settings look like below:
    1. pci
  5. In some cases you might have a few more listing under SSL Cipher Suite order.  Here is a screenshot from a second server (below).  The settings below are also perfectly fine:
    1. pci2
  6. In all cases – MAKE YOUR SETTINGS JUST LIKE ABOVE – and your site should always pass the BEAST test.
    1. IT IS CRITICAL that you have ONLY the CIPHERS selected in the above two screenshots, and the TOPMOST TWO in THIS SPECIFIC ORDER.
  7. apply the changes
  8. Restart the server.
  9. once the server is back up and running, go to the website below:
    1. https://www.ssllabs.com/ssltest/index.html
  10. Allow the test to complete.  The test will tell you if the site passes all the tests and is BEAST compliant, and it will give you a score for your website.  The website we tested scored 89 which is an “A”.

Hopefully this will help shortcut this process for some of you. I literally spent hours working this solution out.





How to permit Google Fonts through your Watchguard WebBlocker content filter proxy

Out of the box, the Watchguard Firewall WebBlocker content filter does not permit Google Fonts to download and be viewed through the proxy and into your network.  This creates a problem because a lot of websites now use embedded fonts to properly render the website.

To fix this, do the following:

  1. Log into the Watchguard Firewall
  2. Presuming you have already setup a Firewall proxy and are using the WebBlocker to filter content…
  3. Go to Firewall->Proxy Actions, and EDIT the current proxy you have custom defined.
  4. Go to HTTP RESPONSE->CONTENT TYPES
  5. ADD the following new actions (below).  You will need to add ALL FIVE to make this work properly.
  6. Save

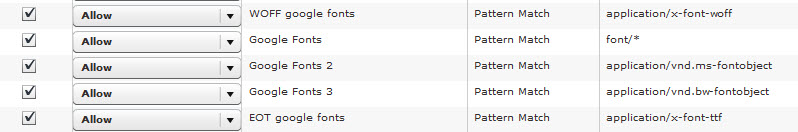

Add the following actions:

googlefonts

How to permit ZIP files through your Watchguard WebBlocker content filter proxy

Out of the box, the Watchguard Firewall WebBlocker content filter does not permit ZIP files to be downloaded inside your network.

To fix this, do the following:

  1. Log into the Watchguard Firewall
  2. Presuming you have already setup a Firewall proxy and are using the WebBlocker to filter content…
  3. Go to Firewall->Proxy Actions, and EDIT the current proxy you have custom defined.
  4. Go to HTTP RESPONSE->CONTENT TYPES
  5. ADD a new action, (ALLOW OR AV SCAN), Pattern match, application/x-zip-compressed
  6. Save
  7. Retry downloading your ZIP file (you may need to close out of your web browser and open it, and try again but this should solve the ZIP file downloading).

How to permit YouTube videos and other videos to play through a Watchguard WebBlocker proxy

Out of the box, the Watchguard Firewall WebBlocker content filter does not permit YouTube (and other streaming videos) to play through the proxy and into your network.

To fix this, do the following:

  1. Log into the Watchguard Firewall
  2. Presuming you have already setup a Firewall proxy and are using the WebBlocker to filter content…
  3. Go to Firewall->Proxy Actions, and EDIT the current proxy you have custom defined.
  4. Go to HTTP RESPONSE->CONTENT TYPES
  5. ADD a new action, (ALLOW OR AV SCAN), Pattern match, video/*
  6. Save
  7. Retry playing your video (you may need to close out of your web browser and open it, and try another video, but this should solve the YouTube and other streaming video issues).

How to allow the YouTube app to play videos through a Watchguard WebBlocker firewall proxy

If you are having problems with iPhones or iPads (or any other device) playing through your Watchguard WebBlocker proxy (via your Watchguard firewall), the fix is very simple.

Presuming you have one of the latest firmwares (11.6.x as of today) and are using WebBlocker with a proxy combined with the content filtering…

Log into the Watchguard

Go to Firewall->Proxy Actions

Select and Edit the proxy setup you are using in your network.  (you must NOT be using a predefined one, you must make your own).

Go to HTTP Proxy Exceptions

add the following:

*.apple.com

*.youtube.com

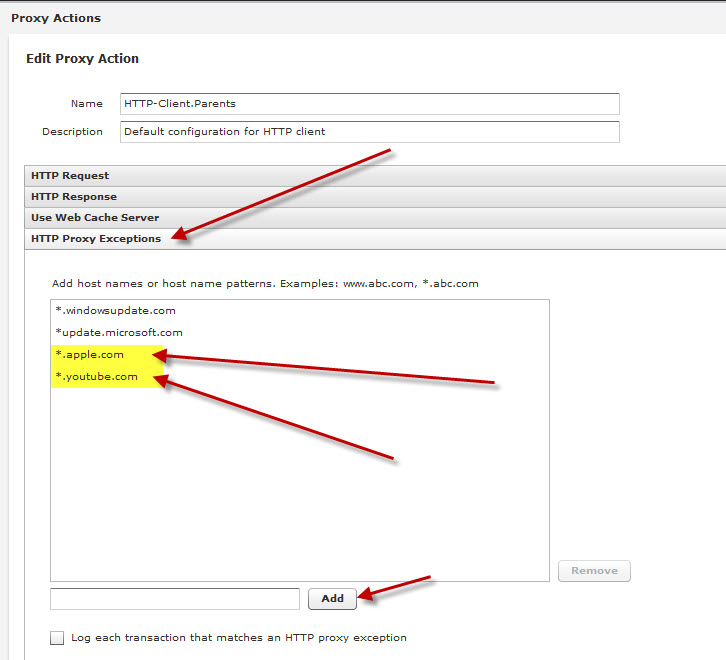

so that your entries look like this:

proxy action

Save your changes.

Re-test your app and the application should play.

This worked perfectly on our network and our i-Devices.
